The specialist for thin ceramic façade panels.

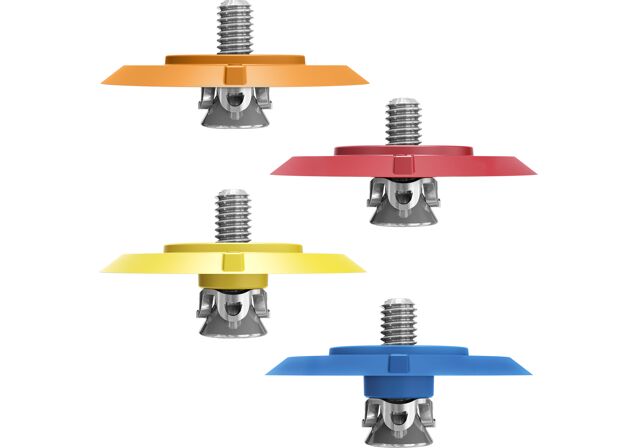

Zykon-Panel anchor FZP II T D40

The concealed fixing solution for thin ceramic and fine stoneware façade panels. Use in conjunction with clasps systems on façades or with other attachments.

Produktvarianter

Nedlastning av bilde

Produktvarianter

Godkjenninger/testrapporter

5 produktvariant(er)

min. platetykkelse

Forankringsdybde

Total lengde

Ankerlengde spredt

Remaining thread length

Gjenge

Tegnforklaring = Tillatelse tilgjengelig— = Tillatelse ikke tilgjengelig

Viste 5 av 5 variant(er)

Fordeler

The anchors’ short geometry allows it to be used in thin panels with a thickness greater than 10 mm.
The fixing of the undercut anchor is not visible on the exposed side, creating a visually attractive and consistent façade surface.
The adapted shape of the undercut anchor ensures a positive-locking attachment free from expansion pressure in a conical undercut drill hole.
Setting the anchor using undercut technology allows the user to always select the optimal structural position in the façade panel. This greatly reduces panel deflection.
The positive-locking anchor is free from expansion pressure provides much better holding force than commonly available systems and allows for the use of large-format panels.

Funksjon/montering

Use wet diamond drilling - first cylindrical, then conical - to drill an undercut hole.
When the undercut anchor is installed, an optimal positive-locking connection is created between the expanding part and the drill hole.
The anchor is installed flush to the absolute anchoring depth. After the anchor is set, the spacer washer will be in full contact with the surface of the material.

Installation FZP II T D40 PA

1 / 4

ETA Certification Document

pdf, ETA-23/0756

European Technical Assessment for fischer-Zykon panel anchor FZP II T

Opprettet 08.12.2023

DOP - Declaration of Performance

pdf, DoP No. 0359

Declaration of Performance for fischer-Zykon-panel anchor FZP II T

Opprettet 12.04.2024

ETA Certification Document

pdf, ETA-23/0035

European Technical Assessment for fischer ZYKON FZP II T D40 PA for fixing Atlas Concorde facade panels - Fastener of external wall claddings. Special anchor for the rear fixing of Atlas Concorde ceramic tile facade panels

Opprettet 24.01.2023

DOP - Declaration of Performance

pdf, DoP No. 0364

Declaration of Performance for fischer ZYKON FZP II T D40 PA panel anchor (for Atlas Concorde ceramic tile facade panels)

Opprettet 03.06.2024

ETA Certification Document

pdf, ETA-22/0400

European Technical Assessment for fischer ZYKON FZP II for fixing Mirage facade panels

Opprettet 25.08.2022

DOP - Declaration of Performance

pdf, DoP No. 0322

Declaration of Performance for fischer Zykon-panel anchor FZP II (for Mirage)

Opprettet 12.10.2022

ETA-godkjenning
min. platetykkelse	8 mm
Forankringsdybde	5 mm
Total lengde ( l )	17,5 mm
Ankerlengde spredt	7,5 mm
Remaining thread length	10 mm
Gjenge ( M )	M6
Diameter	11 mm
Undercutdiameter	13,5 mm
Seismic-godkjenning	C1 / C2
System	—
Antall pr. pak	250 St.
GTIN (EAN-Code)	4048962362077

ETA-godkjenning
min. platetykkelse	8 mm
Forankringsdybde	5 mm
Total lengde ( l )	20,5 mm
Ankerlengde spredt	7,5 mm
Remaining thread length	13 mm
Gjenge ( M )	M6
Diameter	11 mm
Undercutdiameter	13,5 mm
Seismic-godkjenning	C1 / C2
System	—
Antall pr. pak	250 St.
GTIN (EAN-Code)	4048962362084

ETA-godkjenning
min. platetykkelse	8 mm
Forankringsdybde	6 mm
Total lengde ( l )	17,5 mm
Ankerlengde spredt	8,5 mm
Remaining thread length	9 mm
Gjenge ( M )	M6
Diameter	11 mm
Undercutdiameter	13,5 mm
Seismic-godkjenning	C1 / C2
System	—
Antall pr. pak	250 St.
GTIN (EAN-Code)	4048962217735

ETA-godkjenning
min. platetykkelse	10 mm
Forankringsdybde	8 mm
Total lengde ( l )	20,5 mm
Ankerlengde spredt	10,5 mm
Remaining thread length	10 mm
Gjenge ( M )	M6
Diameter	11 mm
Undercutdiameter	13,5 mm
Seismic-godkjenning	C1 / C2
System	—
Antall pr. pak	250 St.
GTIN (EAN-Code)	4048962217742

ETA-godkjenning
min. platetykkelse	11 mm
Forankringsdybde	9 mm
Total lengde ( l )	20,5 mm
Ankerlengde spredt	11,5 mm
Remaining thread length	9 mm
Gjenge ( M )	M6
Diameter	11 mm
Undercutdiameter	13,5 mm
Seismic-godkjenning	C1 / C2
System	—
Antall pr. pak	250 St.
GTIN (EAN-Code)	4048962217759
